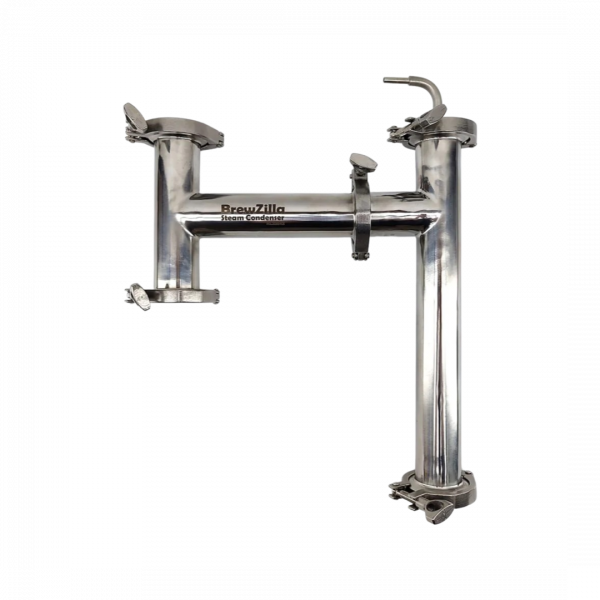

This steam condenser is compatible with the 35L BrewZilla using a stainless distillation lid and 2 Inch Bulkhead. This unit can allow brewing indoors without that pesky sticky steam gumming up your freshly painted interior! The End Cap can be removed for hop and other brewing essentials to be added during the boil. Please note hot steam through this port can lead to serious scalding, please use heatproof gloves.
* Please note distillation lid and 2 inch Bulkhead are required to adapt this for use with your brewzilla or grainfather G30.
Not only will you get to the boil faster, but you will use less power overall to maintain a rolling boil as there will be less area for the heat to escape. No need to install inside a kitchen, or in the garage with a special rangehood. Simply attach this to the Condenser Lid and run your kitchen tap, garden hose to the inlet. You don’t not need super-fast flow rate to cool boiling steam into liquid. Different to distillation where you require the distillate to be under a certain temperature so that ethanol doesn’t evaporate from the liquid at a high rate, with boiling wort you just need enough to form a liquid! Pretty simple.
Eco-Friendly option if you have the means to save/collect the coolant water. Can be re-used on the garden or for cleaning later on. Please note the water discharging will be very hot!
The Spray head can condense 1.6 litres per minute while connected to 100 psi mains water.
This Condenser kit includes:
5 x 2 Inch Tri-Clover Clamps
5 x 2 Inch Tri-Clover Double Beaded Silicone Seals
1 x 340mm Long 2 Inch Tri-Clover Tee
1 x 200mm Wide 2 Inch Tri-Clover Tee
1 x 2 Inch Tri-Clover End Cap
1 x 2 Inch Tri-Clover to 6.5mm duotight elbow cap with elongated spray head mister
1 x 2 Inch Tri-Clover x 12mm Barb (Suitable for 10mm ID Silicone Hosing)
