Mammoth Grain Mill

Description

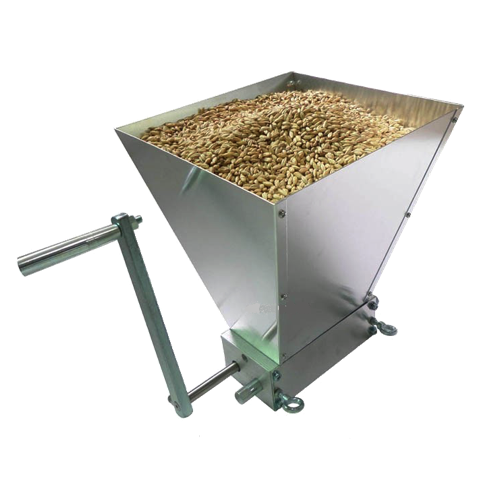

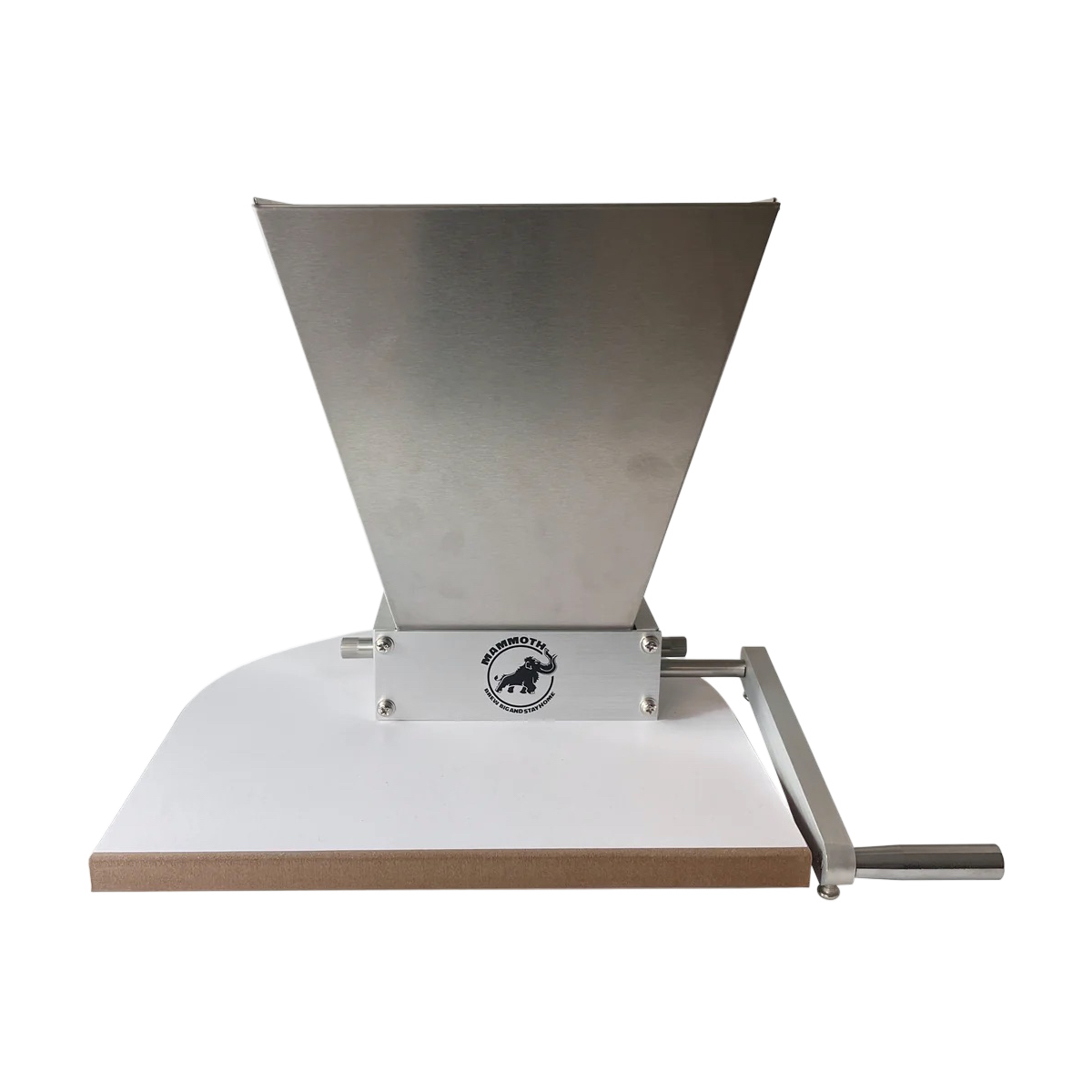

The Mammoth 2-Roller adjustable grain mill is constructed using materials that will last a lifetime. It has stainless steel rollers, aluminum body, stainless hopper and bronze brushings. This adjustable 2-roller mill offers a professional grade crush for barley, wheat and other cereals. The hopper can hold up to 6.5lbs (3kg) of grains. A hand crank is included, but the mill can also be easily motorized with a corded electric drill for faster and easier use. Stainless knurled knobs allow for easy gap spacing adjustment with a range of 0.70”. Adjusting is simple – just loosen the adjustment screws, adjust the gap and tighten the adjustment screws.

Includes a 1 year warranty.

Features:
Width and roller diameter is optimized for use with power drills.
Adjustable rollers to give uniform crush.
12 TPI knurls to efficiently pull grain through, while leaving hulls intact.
152mm (6") long adjustable gap.
0.060 fixed primary gap, 0-0.065 fully adjustable secondary gap.
8 lbs (3.6kg) / minute is average throughput.
152mm (6") x 38mm (1.5") diameter steel rollers.
Durable alloy frame.
SAE 841 oil impregnated bronze bushings.
Integral drive shaft and axles.

Specifications:
Rollers: Stainless steel
Grinder housing: Aluminum 6061
Hopper: Stainless steel
Total height: 263mm (10.35”)
Hopper dimensions at top: 223 (8.77”) x 210mm (8.26”)
Footprint size of grinder: 150mm (5.9”) x 75mm (2.9”)
Dimensions: 76mm (2.9”) x 150mm (5.9”) x 50mm (2”)
Steel Rollers: ø 32mm (1.2”) x 125mm (4.9”)
Adjustable distance: 0.025 – 0.1 inch (0.635 – 2.54 mm
Crank handle: 180mm (7”)
